■Non-sparking Tools
■Beryllium Copper & Aluminum Bronze
■Die Forged
■Q/ZBF-164B

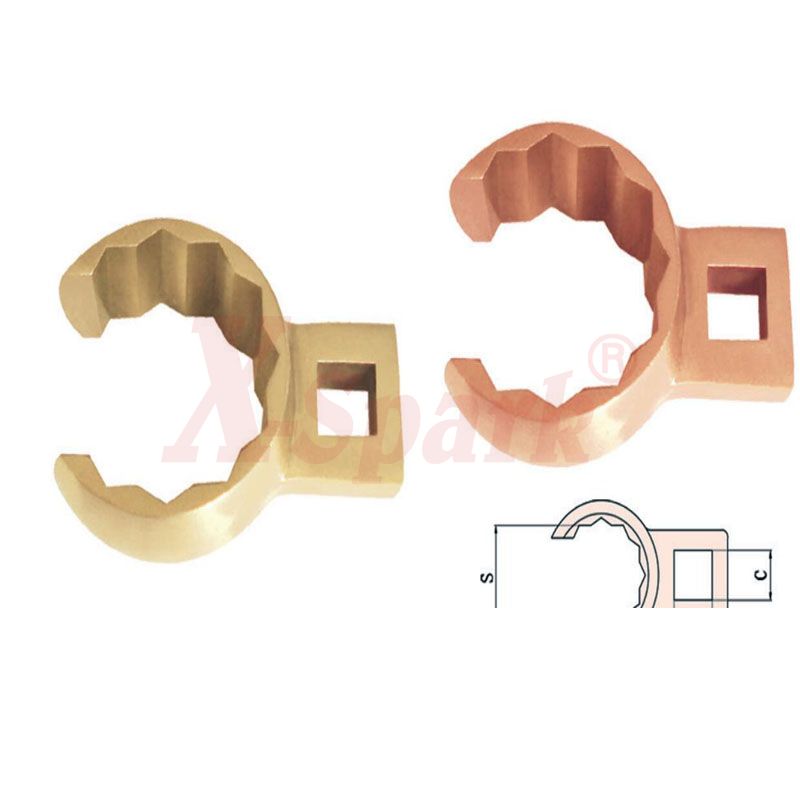

■Matched with torque wrench, used to perform protection when tighten or loosen special bolts and nuts.
Number | C inch | S inch | L mm | Be-Cu g | Al-Br g |
164B-1002 | 3/8" | 7/16" | 29 | 35 | 30 |
164B-1004 | 1/2" | 31 | 40 | 35 | |
164B-1006 | 9/16" | 33 | 45 | 40 | |
164B-1008 | 5/8" | 38 | 50 | 45 | |
164B-1010 | 11/16" | 41 | 55 | 50 | |
164B-1012 | 3/4" | 43 | 55 | 50 | |
164B-1014 | 1/2" | 7/8" | 48 | 80 | 70 |
164B-1016 | 1" | 52 | 85 | 75 | |
164B-1018 | 1-1/16" | 54 | 90 | 80 | |
164B-1020 | 1-1/8" | 56 | 100 | 90 | |
164B-1022 | 1-1/4" | 62 | 145 | 130 | |
164B-1024 | 1-5/16" | 66 | 170 | 150 | |
164B-1026 | 1-1/2" | 72 | 190 | 170 | |
164B-1028 | 1-5/8" | 76 | 210 | 180 | |
164B-1030 | 2" | 89 | 230 | 200 |
